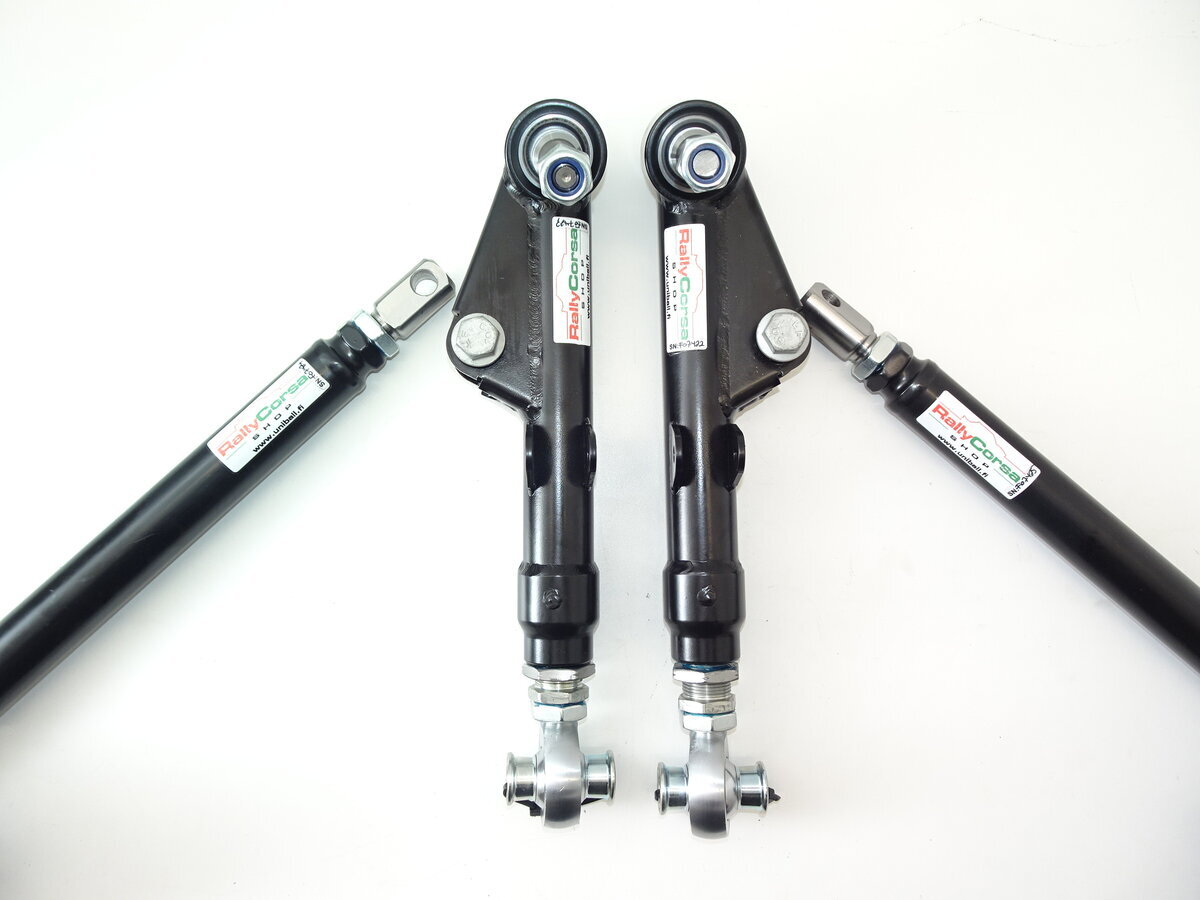

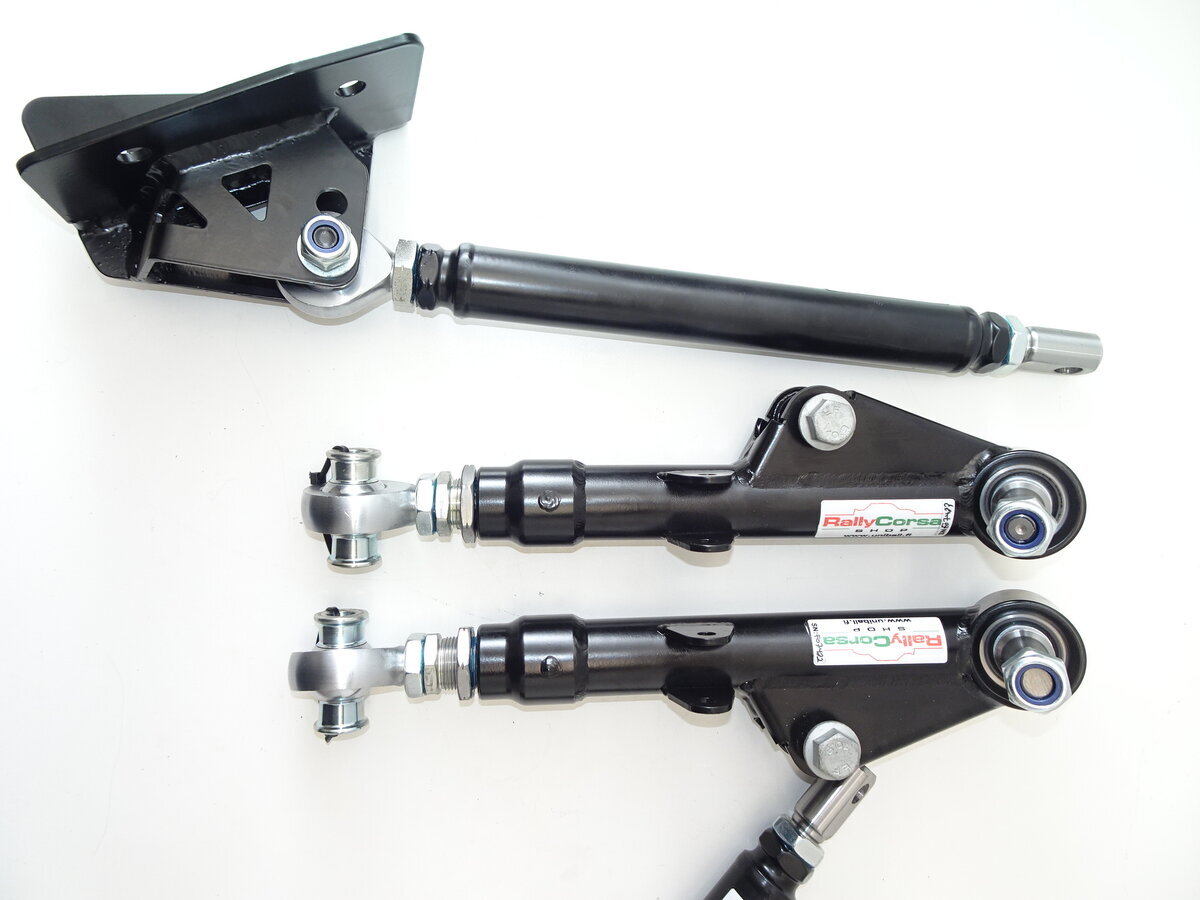

Ford Sierra Cosworth mk1 PRO+ front suspension arm kit. Complete kit with all nuts and bolt for assembly. Bolt on kit. All welded parts are made from Cromo 4130. Machined parts are Cromo 4130 (25cromo4).
Kit includes:

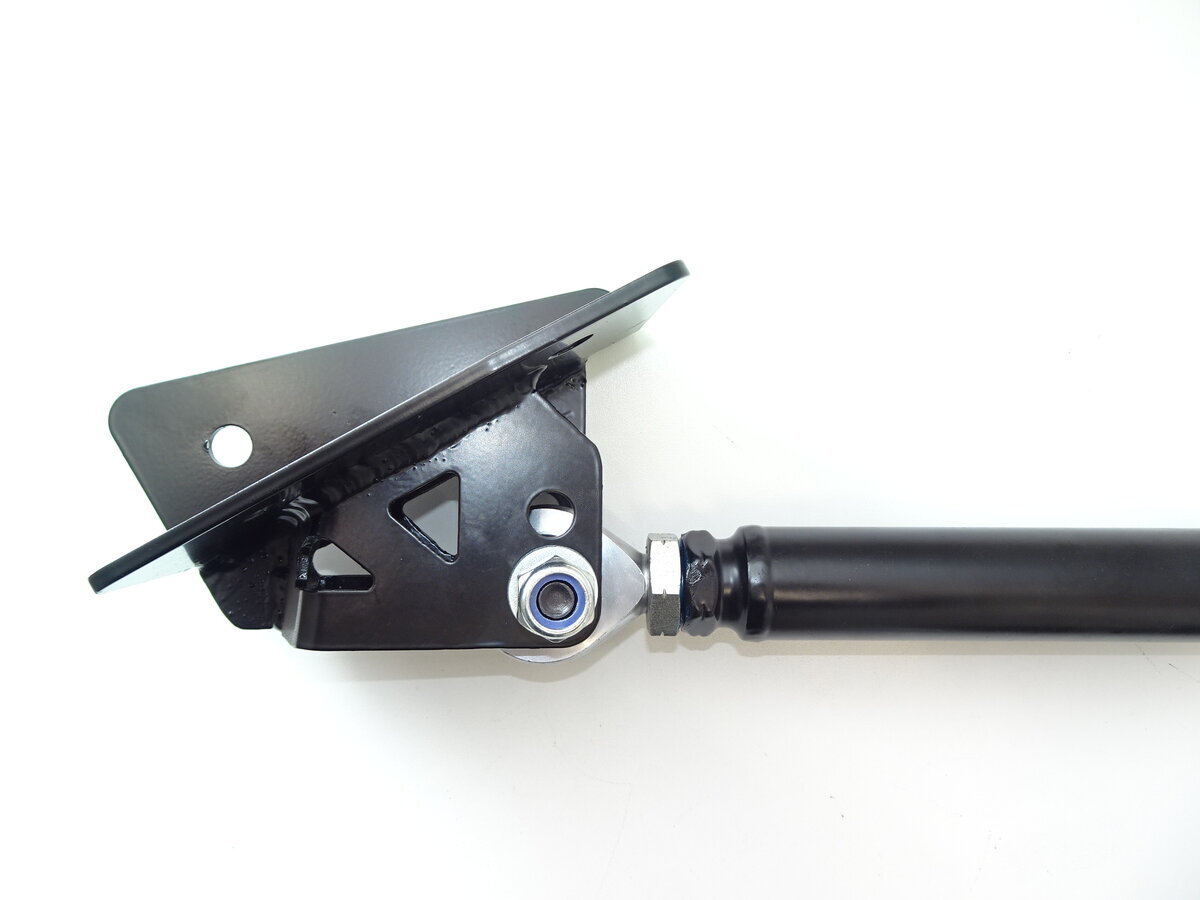

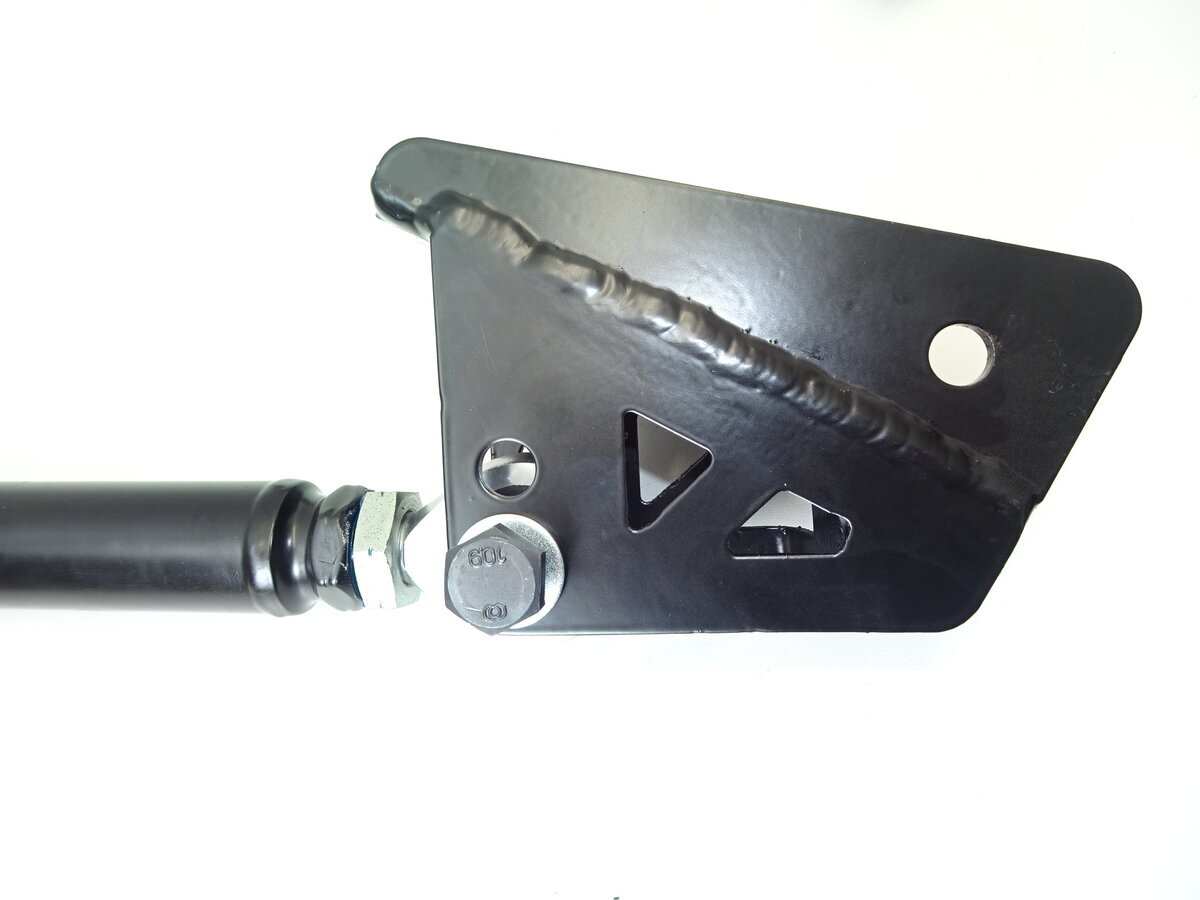

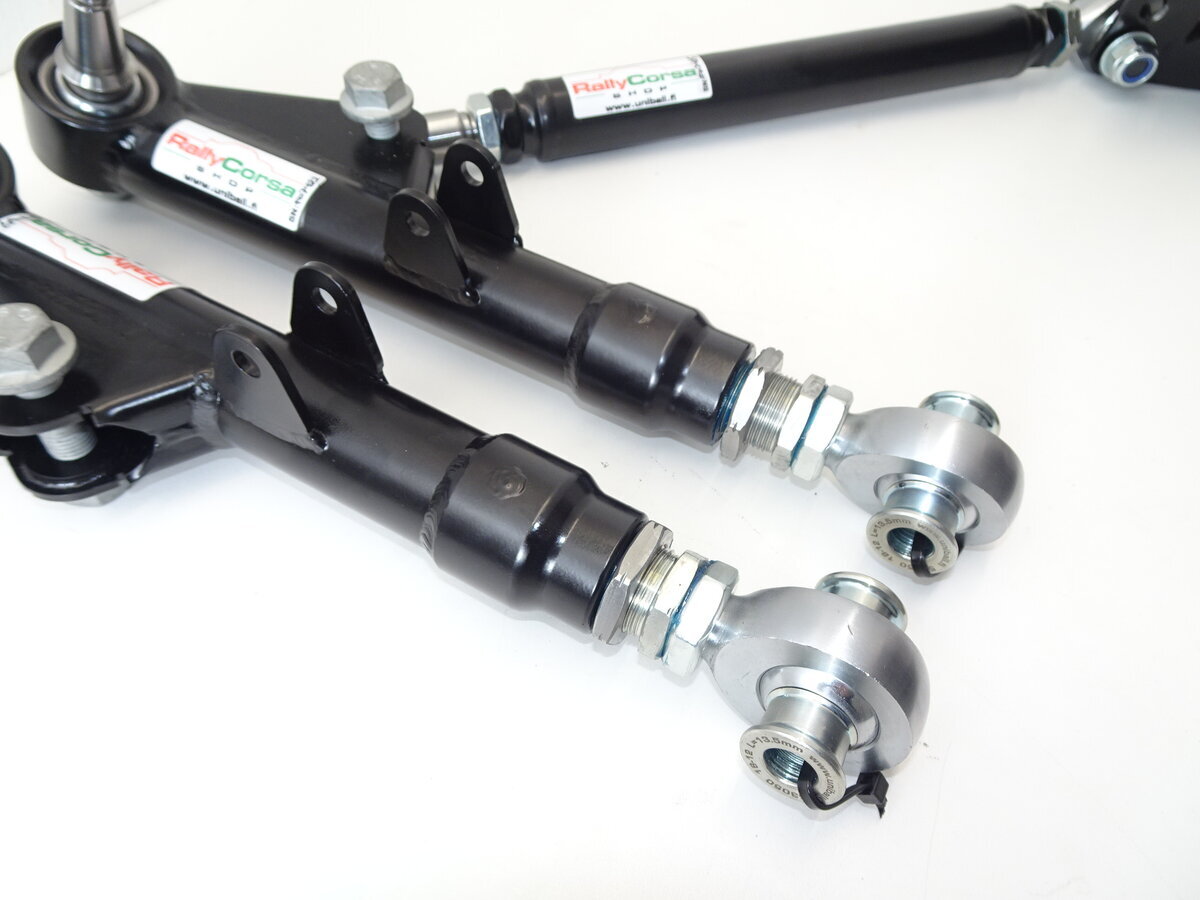

- Cromo front track controlarm with M16x1.5 rosejoint in PRO adjuster on body side and 40x20mm spherical on wheel side, all cromo 4130. PRO version = in place adjustable and 35×2.0 cromo tube. Spherical/cup comes in STD 8 degree angle. (Rallyversions have 15 degree angel. You can get this as you wish.)
- Wheelside mounting with MOC 410 shaft with M16x1.5 and M12x1.5 nylock nuts
- Cromo tension arm with „stiff-joint” made from MOC 410 on TCA side, on body side M16x1.5 rosejoint with PRO-adjuster. STD antirollbar mounting point
- To all rosejoints you will get reducers down to 12mm bolt aned 14mm bolt as std
- To tension arm- TCA mounting hardware with the kit, 10.9 grade M12x1.5 thread screws with nylock nuts
- TCA/Tension arm powdercoated
Production sertificate for MOT inspection comes with the kit on request. Antirollbar linkages not included.
